Description:
KINGLAND SOLUTIONS Reinforced non-asbestos composite sheet
is combining non-asbestos gasket material with tang perforated (or
flat) steel core(Tinplate/SS304/SS316). I t has excellent sealing
performance for motorcycle and automobile cylinder ，and could be
coated by graphite . The short duration maximum temperature is up
to 400℃ (750℉).
Composite Type:
KL-W/A :Non-Asbestos fiber sheet +Steel +Non- Asbestos fiber sheet
KL-W/B: Non-Asbestos fiber sheet + Steel + Non-Asbestos fiber sheet + Steel +Non-Asbestos fiber sheet
KL-W/C : Steel+ Non-Asbestos fiber sheet
KL-W/D : Steel+ Non-Asbestos fiber sheet + Steel
Typical Application:
> Mainly applied in automobile farming machines, motorcycle and engineering etc.
> Can be used in high strength gaskets and cylinder gaskets etc
Prime Features:
> 100% not including asbestos
> Excellent performance dilatability, sealing equality and long life.

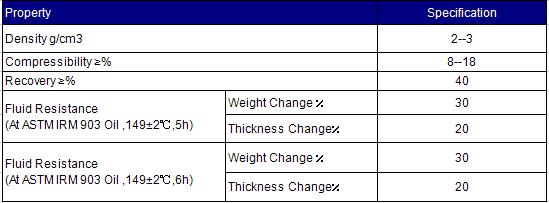

Technical Specifications:
|
 |
|
Standard Sheet Size:
512*1020mm;500*1000mm;500*1200mm;500*1500mm Thickness:1.0mm ~ 3.0mm
Color: Gray, Black.,Red,Blue.
The other size is optional or according to
the requirements of customers.
|
